Product Name
EPS & EFP Series Lightweight Electric Stackers
A compact, lightweight stacker series designed for effortless lifting, smooth maneuvering, and reliable load handling in tight warehouse and workshop spaces.
Key Features:
1. Lightweight & Compact Design
Built with high-strength steel and precision engineering, the stacker features foot-pedal lifting, precise height control, eco-friendly operation, and easy maintenance—making it ideal for space-limited environments.
2. Two Platform Types for Different Needs
EPS Series: Features a detachable platform, offering flexibility for various pallet and cargo configurations.
EFP Series: Equipped with a fixed platform for enhanced structural stability and durability in continuous heavy-duty use.
Both ensure efficient and adaptable material handling solutions.
3. Seamless Chrome-Plated Steel Frame
The frame is formed from a single seamless steel pipe with symmetrical columns, providing a smooth, sleek, and modern appearance while ensuring long-term rigidity.
4. Durable Integral Forks
The U-shaped cover forks are made from 5mm Q235B carbon steel, bent and welded for superior strength. Powder-coated and baked for durability, they resist deformation under heavy loads.
5. Electric Lifting for Effortless Operation
Effortlessly control lifting via electric buttons at a speed of approximately. 5 cm/s, reducing manual effort and improving workflow efficiency.
6. Easy Maneuverability in Tight Spaces
Lightweight body and small turning radius, combined with PU swivel wheels, enable smooth operation even in narrow aisles.
7. Reinforced Chain for Safe & Stable Lifting
Thickened lifting chains ensure steady operation, higher load capacity, and increased safety during lifting and lowering.
Product Specifications
| Model | Unit | EPS0412 | EPS0415 | EFP0412 | EFP0415 |
| Rated Load | kg | 400 | 400 | 400 | 400 |
| Maximum Height | mm | 1425 | 1725 | 1330 | 1630 |
| Lifting Height | mm | 1115 | 1415 | 1000 | 1300 |
| Platform Height | mm | 85–1200 | 85–1500 | 200-1200 | 200-1500 |
| Overall Width | mm | 600 | 600 | 590 | 590 |
| Platform Size (L×W) | mm | 650×576 | 650×576 | 650×550 | 650×550 |
| Fork Size (L×W) | mm | 650×110 | 650×110 | - | - |
| Steering Wheel Size | mm | Φ127×40 | Φ127×40 | Φ150×40 | Φ150×40 |
| Load Roller Size | mm | Φ75×40 | Φ75×40 | Φ150×40 | Φ150×40 |
| Lifting Speed (Loaded/Unloaded) | mm/s | 80/185 | 80/185 | 80/185 | 80/185 |
| Lowering Speed (Loaded/Unloaded) | mm/s | 75/115 | 75/115 | 75/115 | 75/115 |
| Battery Capacity | V/Ah | DC 12V/60Ah | DC 12V/60Ah | DC 12V/60AH | DC 12V/60AH |
| Motor Power | W | DC 12V/700W | DC 12V/700W | DC 12V/700W | DC 12V/700W |
| Net Weight | kg | 109 | 115 | 108 | 114 |
| Packing per Pallet | pcs | 1 | 1 | 1 | 1 |
| Pallet Dimension (L×W×H) | mm | 1150×630×1510 | 1150×640×1860 | 1150×630×1510 | 1150×640×1860 |
|
|

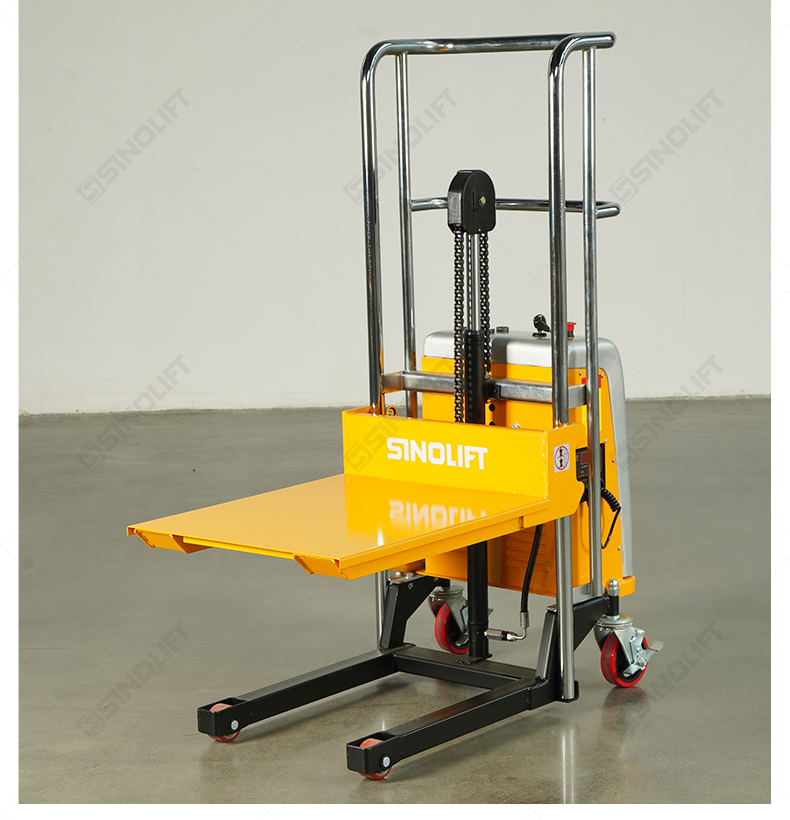

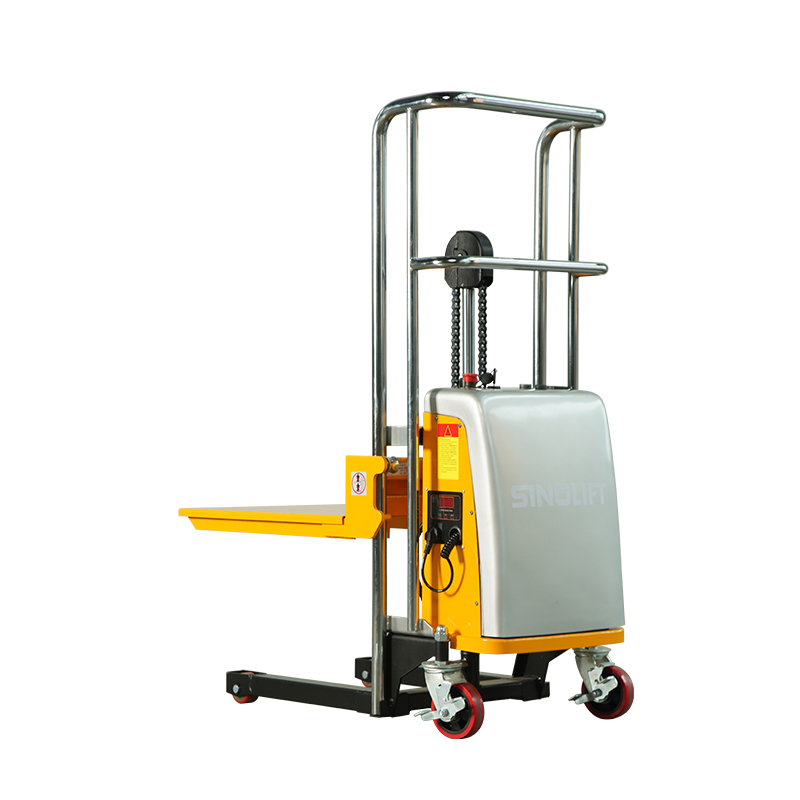

EPS & EFP Series Lightweight Electric Stackers Images
|
